Safety information
The installation of current transducers requires qualified personnel. Follow the safety and warning notes in the transducer's documentation.
Connecting sensor and cable

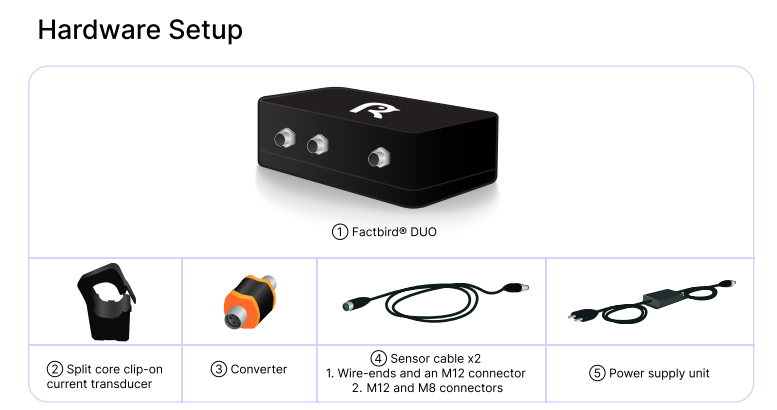

1. Connect one end of(4)sensor cable to(2)clip-on sensor(+ output to pin 1 brown wire, - output to pin 2 white wire) and the other end to (3)converter, (4)sensor cable and (1)Factbird® DUO device on any of the two ports.
2. Connect (5)power supply unit to [ :+
the power input on the (1)Factbird® DUO device.
3. Plug into power and check if the display on (3)converter turns on.
Mounting on production machines

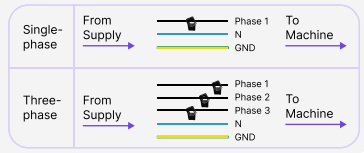

1. Mount (2)sensor.
2. Place the (1)Factbird® DUO where it
receives good network signal.
Not inside the cabinet or metal box.
Not under or between big machines
