Factory Overview

WHAT THIS IS

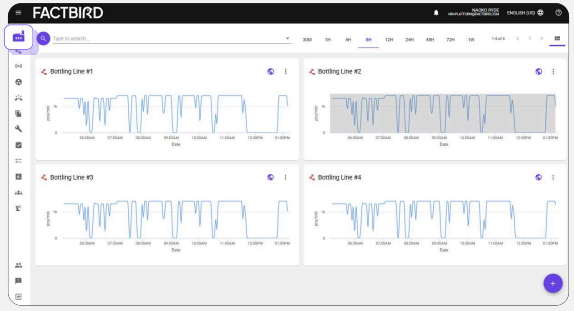

Factory Overview is a dashboard in Factbird that displays production performance across multiple levels of an organization. It allows users to view data ranging from high-level summaries (such as regions or divisions) down to detailed views of individual sites, lines, or assets.

The dashboard is designed to present a hierarchical view of manufacturing operations in one place.

WHY IT MATTERS

Factory Overview makes it easier to monitor and compare performance across different parts of the organization. It helps users quickly identify where issues or improvements are occurring without needing to navigate through multiple separate views.

By consolidating data into a structured overview, it supports better visibility and faster decision-making.

WHEN YOU WOULD USE THIS

Use this when:

• You want a high-level overview of production performance
• You need to compare performance across regions, sites, or lines
• You are analyzing where issues or inefficiencies are occurring
• You want to navigate from summary data into more detailed views

HOW IT WORKS

Factory Overview organizes data into a hierarchical structure that reflects the organization setup. Users can move between levels, starting from broader groupings (such as regions or divisions) and drilling down into more specific levels like individual sites, production lines, or assets.

Navigation is supported through:

• Drill-down functionality, which allows deeper exploration into specific areas

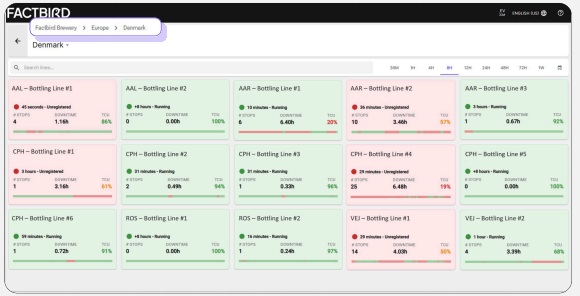

• Breadcrumb navigation, which shows the current position in the hierarchy and allows movement back to previous levels

This structure enables users to move seamlessly between overview and detail while maintaining context.

KEY TERMS / COMPONENTS

Factory Overview:

• A dashboard that displays performance data across the full organizational structure

Organization View:

• The hierarchical structure used to group regions, sites, lines, and assets

Drill-down:

• The ability to navigate from high-level summaries to more detailed data

Breadcrumbs:

• A navigation element that shows the current location in the hierarchy and allows moving back to previous levels

COMMON MISUNDERSTANDINGS

• Factory Overview only shows high-level data
  • It supports both high-level summaries and detailed drill-down views

• It is limited to one site or line
  • It covers the entire organization, from global to asset level

• Navigation requires switching between different dashboards
  • Movement between levels happens within the same view using drill-down and breadcrumbs
