DATASHEET- Barcode Solution

Updated August 22, 2025 13:54

Teltonika Router RUTX11 (Preprogrammed by Factbird)
Dimensions - Mounting space	115 x 165 x 199 mm 4.5 x 6.5 x 7.8 in
Weight (device + box + accessories)	936 g / 33 oz
Operating temperature	-40° to 75° C -40° to 167° F
Operating humidity	10% to 90% noncondensing
IP Rating	IP30
Wi-Fi security	WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
Wireless mode	802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Mobile module	4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
Housing	Aluminium housing with DIN rail mounting option and grounding capability

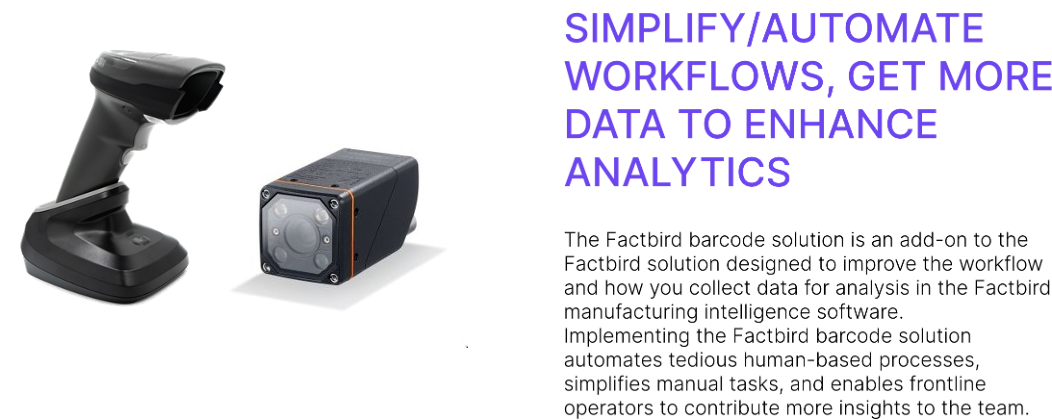

Zebra 2278 (Handheld barcode scanner)
Dimensions	175 x 66 x 89 mm / 6.9 x 2.6 x 3.5 in
Weight	214 g / 7.5 oz
Operating temperature	0° to 50° C / 32° to 122° F
Storage temperature	-40° to 70° C -40° to 158° F

ifm O2I503 (Fixed mount barcode scanner)
		45 x 45 x 86 mm / 1.8 x 1.8 x 3.4 in
		601 g / 21 oz
Ambient temperature		-10° to 50° C 14° to 122° F
Type of light		Infrared light
Image resolution		1280 x 960 px
Max. reading rate		40 Hz
Field of view size
Operating distance - Field of view 35 mm/1.4 in - 25x19 mm/0.98x0.75 in 300 mm/11.8 in - 184x138 mm/7.2x5.4 in 500 mm/19.7 in - 304x228 mm/12 x9 in 1000 mm/39.4 in - 604x453 mm/24x18 in
Operating distance		> 35 mm / 1.4 in
Materials	Housing: diecast zinc powder-coated Front pane: Gorillaglas LED window: PC Pushbutton: POM
Sealing material		FKM

Please refer to each manufacturer's website for more information.
