You can download this guide here: Connecting digital inputs to a Factbird® DUO
Connecting digital inputs to Factbird Duo

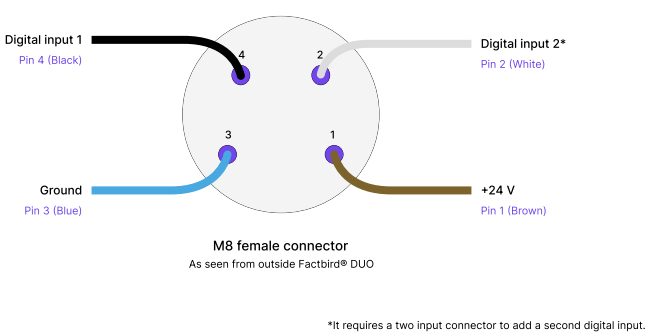

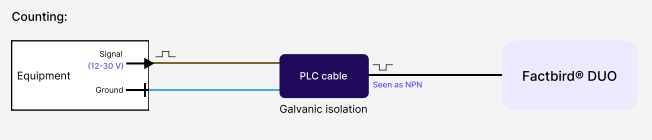

Digital signal (12-30V)

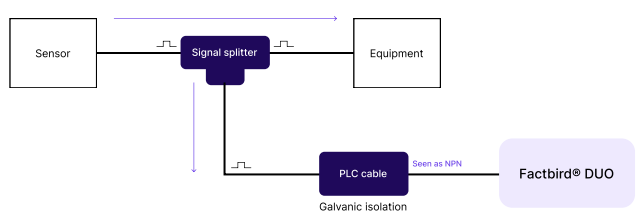

Copy existing signal

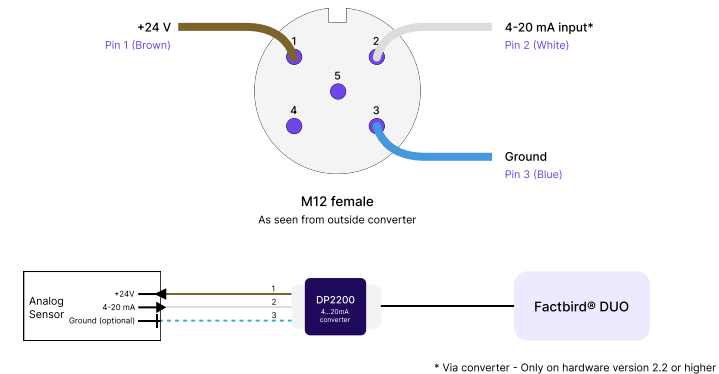

Analog (4-20mA)*

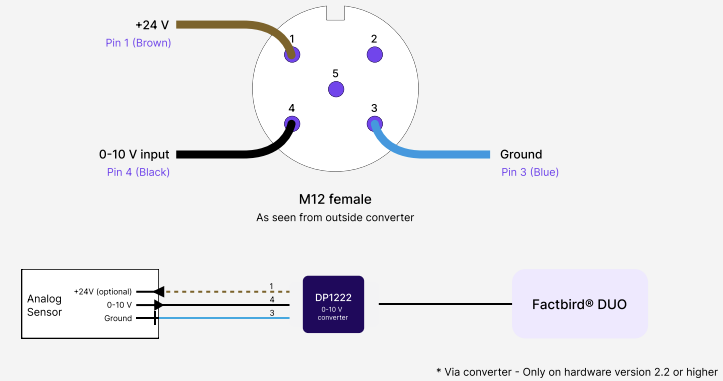

Analog (0-10V)
